Kirkalocka Processing Plant

AT A GLANCE

Open-pit gold operation in WA’s Murchison district

Processing type
Conventional carbon-in-leach (CIL)
ROM capacity
700,000 tonnes
Throughput
2.0 Mtpa
Recovery
+90%
Ore types
Oxide, transitional and fresh
Large-scale open-pit gold mining operation at Kirkalocka project

Processing access in the centre of WA’s gold district

Strategically located in Western Australia’s Murchison gold district, the Kirkalocka Processing Plant is undergoing refurbishment ahead of a Q2 2026 restart. The facility has a nameplate capacity of 2.0 million tonnes per annum, purpose-built for oxide, transitional and fresh ores, and is configured to deliver high metallurgical recovery and consistent campaign performance.

Learn more

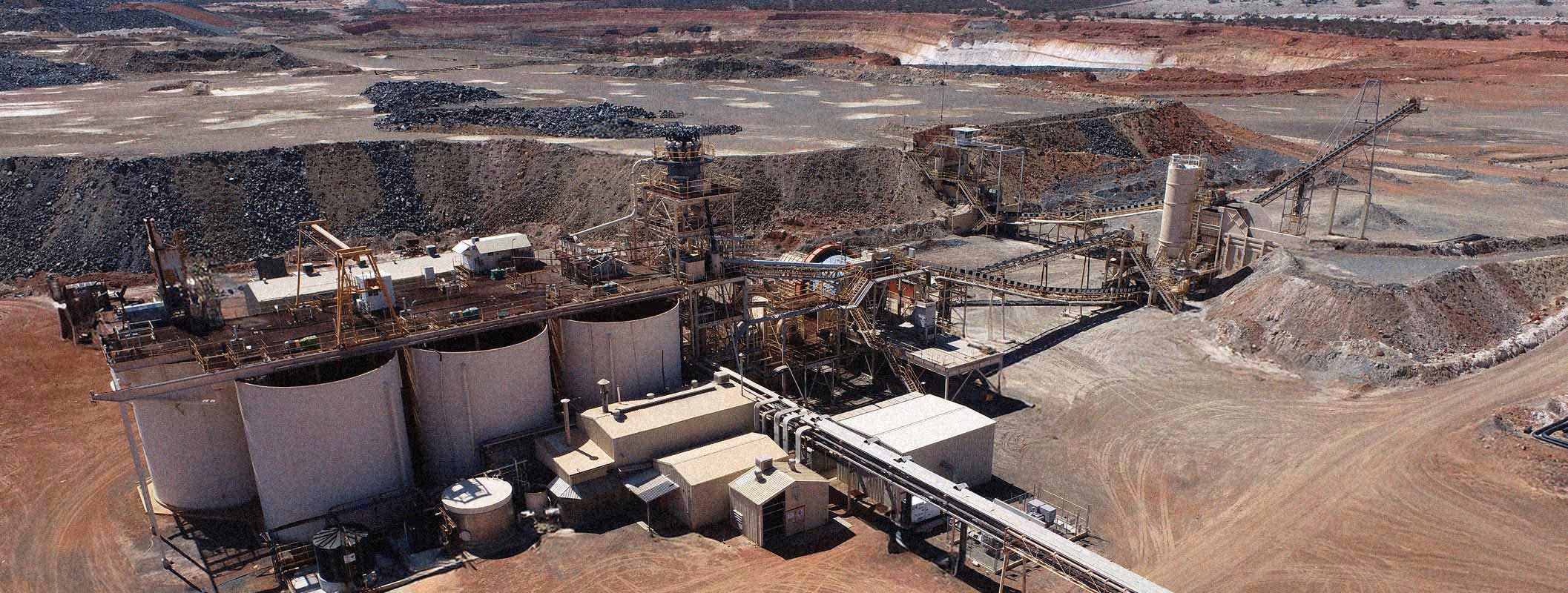

Aerial view of gold mining site and infrastructure in WA
Gylden Resources on-site accommodation and community facilities

Processing

Ore is delivered to a run-of-mine stockpile with a capacity of 500,000 to 700,000 tonnes before single-stage crushing, SAG milling, gravity concentration, and carbon-in-leach treatment. A dedicated gravity circuit recovers free gold for processing in the gold room. The six-tank leach and adsorption circuit provides approximately 24 hours of retention, supporting high metallurgical recovery.

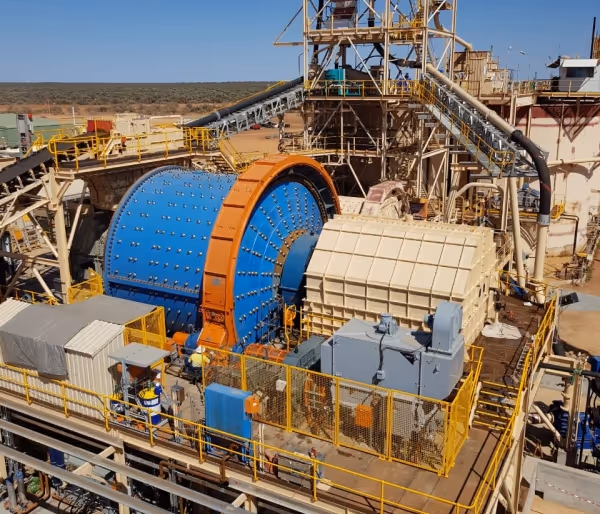

Processing infrastructure at Kirkalocka Plant, Murchison region WA

Toll milling

From Q2 2026, Kirkalocka will operate on a campaign basis for toll treatment. Each parcel will be processed as a discrete run to maintain complete separation through the circuit. Before scheduling, all ore will be subject to a compatibility assessment and metallurgical test work to determine plant configuration requirements and expected recovery performance.

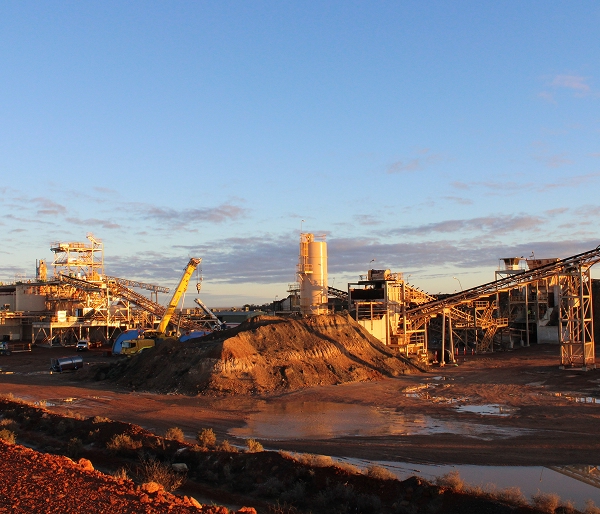

Ore processing and gold recovery facility equipment at Kirkalocka

Ore purchase

Gylden Resources may purchase third-party ore for processing through the Kirkalocka facility. All purchase agreements are contingent on assay verification, metallurgical testing, and the establishment of commercial terms.
Gold ore core samples from exploration at Gylden Resources projects

Contract Mining & Logistics Support

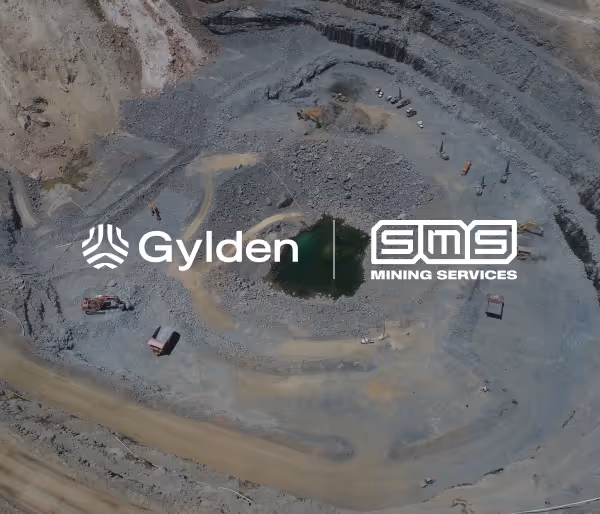

Through its partnership with SMS Mining Services, Gylden Resources can coordinate contract mining services and haulage for tolling campaigns.

Gold Beneficiation Processing

Download Plan

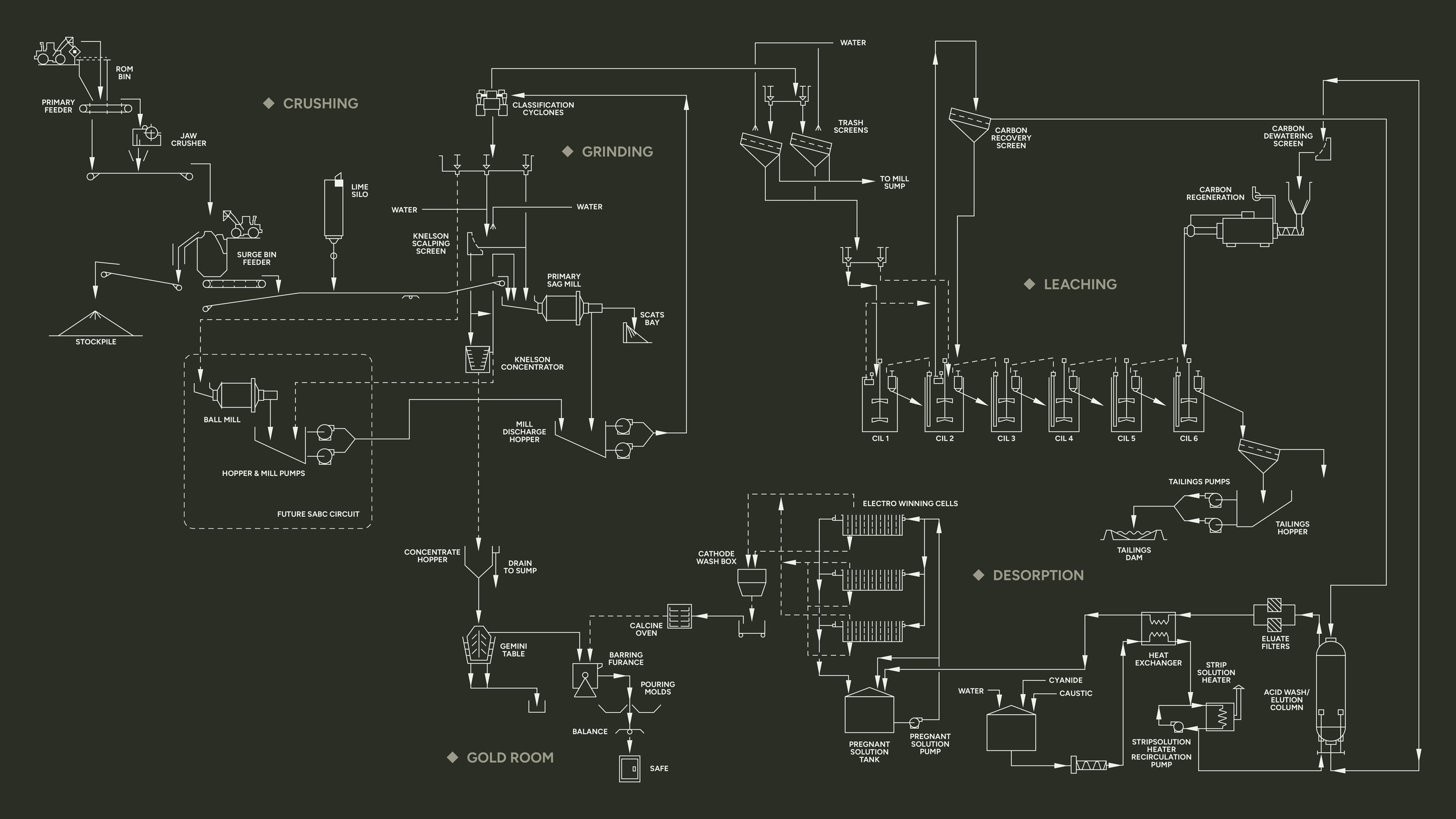

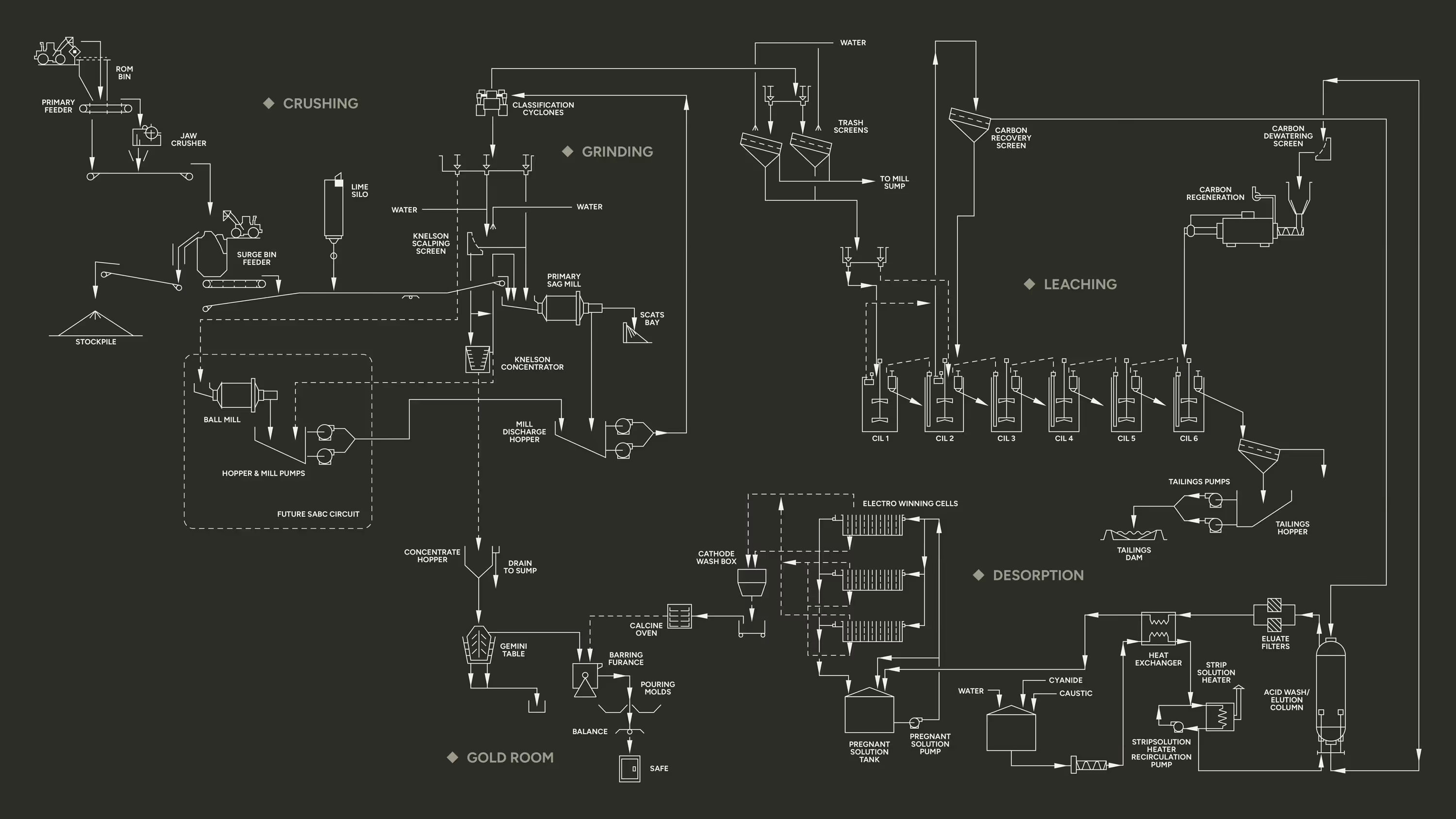

Detailed line drawings of a Gold Beneficiation Processing and how its moved through its proccess
INFRASTRUCTURE

Location and Facilities at Kirkalocka

  • Proximity to regional hubs

    Centrally located in WA’s Murchison gold district, within easy haulage range of operating mines and active exploration projects. The site is located at the midway point between Paynes Find and Mt Magnet being 75 kilometres south of Mount Magnet and 75 kilometres north of Paynes Find.

  • Highway access

    Direct access to the Great Northern Highway streamlining campaign logistics and reducing turnaround times for ore movements.

  • On-site accommodation

    185-room camp with catering, gym and internet, supporting continuous operations and visiting contractor crews without the need for daily travel from town.

  • Sealed airstrip nearby

    A sealed all-weather airstrip at Mount Magnet, 40 minutes away, offers reliable year-round flights for personnel and light freight, supporting rapid mobilisation and flexible rosters.

  • Airstrip adjacent to camp

    An unsealed airstrip adjacent to the camp provides RFDS access for emergency medical services and light aircraft landings, adding another layer of safety and accessibility for site personnel.
